- Interface: 26-Bit, Wiegand Output, HID® & AWID® Supported
- Warranty: Lifetime Limited Warranty
- Environment: Rugged, Weather-Resistant Design
- Access Control: Listed To UL 294
- Energy: 75mA, 5 – 16VDC (Max at 12VDC)
- Frequency & Range: 125kHz, Up to 5" (127mm) (Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)
- Non-Standalone Proximity
Features and benefits:

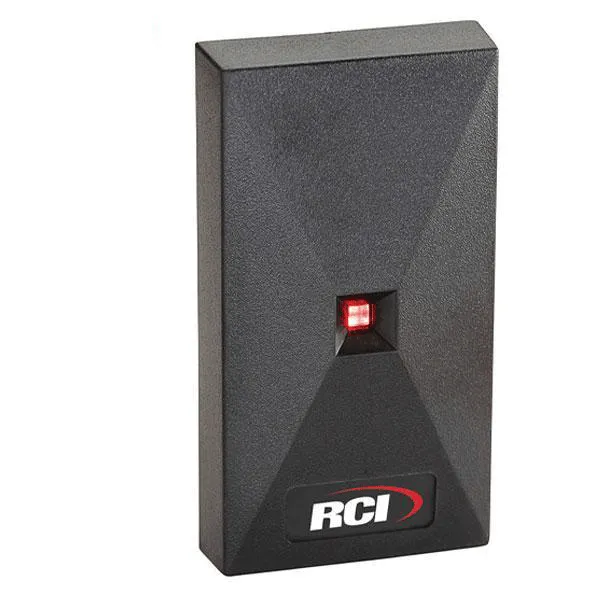

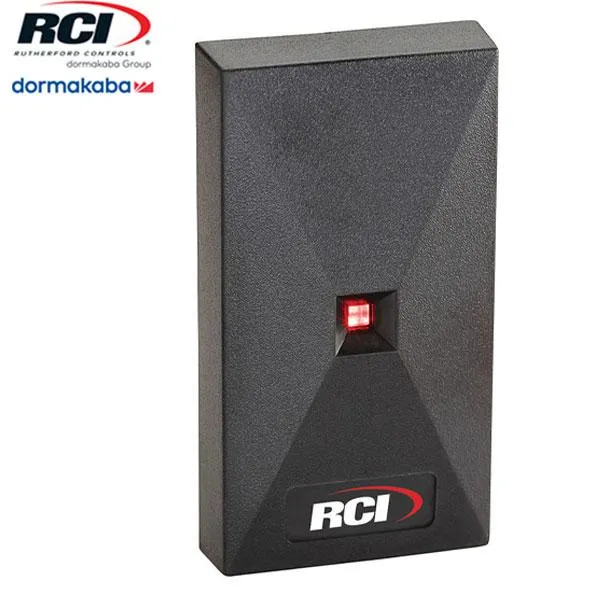

The 6005R mullion proximity reader is designed to slim for areas with minimal surface space to mount a reader. Using RFID technology, the RCI 6005R reader interfaces with a wide range of electronic access control systems by complying with the Wiegand communication protocol. The reader operates at a frequency of 125kHz and has a proximity read range up to 5”. The reader is intended for interior or exterior applications as all electronics are sealed in tamper and weather-resistant epoxy potting.
- Electronics are sealed in tamper and weather resistant epoxy potting
- Includes black & beige snap-on covers
- 26-Bit, Wiegand Output, HID® & AWID® Supported
- Lifetime Limited Warranty
- Rugged, Weather-Resistant Design
- 75mA, 5 – 16VDC (Max at 12VDC)
- Range Up to 5" (127mm)
- Frequency of 125kHz(Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)
- Applications: Doors Parking Barriers Turnstiles Gates
